Product description

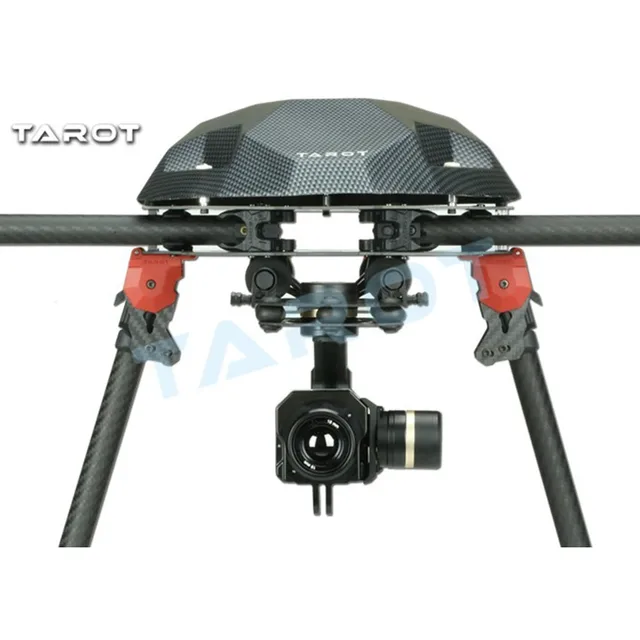

[32831414280]Tarot thermal imaging camera Flir Vue Pro 640 TLFLIR-PRO640 with gimbal for multi-axis multi-rotor mapping/Precision agriculture
Product introduction:
FLIR Vue Pro, designed for professional applications, is not only a thermal imager, but also an excellent tool for providing thermal measurement and data recording. It is of great value in the field of small UAV system operation and maintenance.
Vue Pro has the same excellent imaging quality and economical price as the popular FLIR Vue, adding full-frame data recording of thermal video and 14-bit still images.
When the connection is embedded into the flight control system, Vue Pro can embed all the geographic location and flight data information of the aircraft into each acquired image, and easily complete the image stitching, which can meet the needs of mapping, surveying and fine agricultural applications.
Economical thermal imaging product with built-in data recording function:
• Built-in thermal data recording function
• Easy-to-use power input / video output interface with 10-pin mini-USB connector
• The image settings are optimized to meet the requirements of airborne operations, and the thermal images and flight data are stored in the MINI-SD card
• Record real-time thermal video in MOV format
• Save flight information of the aircraft in each still image
• Easy integration of MAVLink via RS-232 interface
Powerful and flexible camera control and configuration options
• Control of two selectable camera functions via PWM input — Image palette, recording start / stop, still image capture or electronic zoom settings
• Configure the camera's data recording and control settings through the mobile app
• Supports field upgrades to ensure real-time function updates
Product parameters:
Product name: Flir Vue Pro640
Detector Type: Non-Cooled Vanadium Oxide (VOX) Focal Plane Detector
Wavelength range: 7.5-13.5um
Frame rate: 9HZ
Pixel size: 17um
Resolution: 640 * 512
Optional lens: 9mm
13mm
19mm
APP Bluetooth Assistant: IOS and Android operating system
SD storage: up to 32G
Image video storage: 8-bit MJPEG or H.264 digital video and 14-bit still images
MAVLink integration and camera control: color correction / start or stop recording or electronic zoom
Temperature measurement information overlay: not supported
Size: 45 * 63 * 45mm (including lens)
Weight: 128g
SUAS image optimization: support
Image Inversion: Supported-Adjust in GUI
Digital Detail Enhancement: Support-Adjust in GUI
Level control (black hot / white hot) and color palette: support-adjust in GUI
Analog NTSC, PAL video interface: support
Input power voltage: 4.0-6.0 VDC
Operating temperature range: -20 ° C to + 50 ° C
Non-operating temperature range: -55 ° C to + 95 ° C
Working altitude: 12200 meters
Application:
FLIR Vue Pro is equipped with the powerful thermal imaging movement used in the world's most popular thermal imager, which increases flexibility and cost performance, making it ideal for the following applications:
Search and rescue
Precision agriculture
Roof inspection
Power line inspection
Substation inspection
Cell tower check
Security
measuring
Anything else you can think of
Specifications:
FLIR VUE PRO 640 lens specification 19mm * 1
