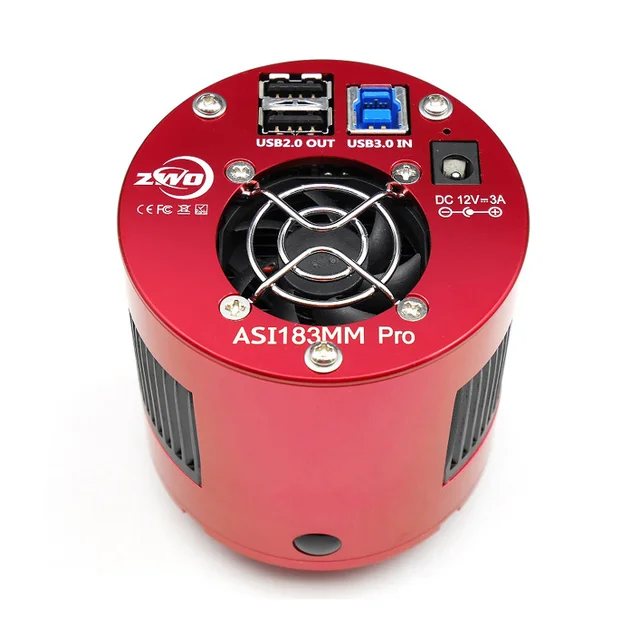

ZWO ASI 183MM PRO Cooled Monochrome Cameras



US $999Original Price : US $$999,00 0%

Limited Price ZWO ASI 183MM PRO Cooled Monochrome Cameras with FREE Worldwide Shipping!

 4.4

Buy on AliExpress

Related Products :

[Related Title 1]

[Related Title 2]

ZWO ASI 1600MM Pro-Cooled (MONO) astronomy camera

ZWO ASI533MC Pro Firset Light by Maple Gao Deep space photography Frozen camera

Product description

[32849926862]

Camera technical details
Sensor: 1″ CMOS IMX183CLK-J/CQJ-J Diagonal: 15.9mm Resolution: 20.18Mega Pixels 5496*3672 Pixel Size: 2.4μm Bayer Pattern: None Shutter:Rolling shutter Exposure Range: 32µs-2000s ROI: Supported Read Noise: 1.6e @30db gain QE peak: 84% Full well: 15ke ADC:12bit DDRIII Buffer: 256MB Interface: USB3.0/USB2.0 Adaptor: M42X0.75 Protect window:AR window Dimensions: 78mm Diameter Weight: 410g Back Focus Distance: 6.5mm Cooling: Regulated Two Stage TEC Delta T: 40°C-45°C below ambient Camera Power consumption: 650mA at 5V Cooler Power consumption: 12V at 3A Max Working Temperature: -5°C—45°C Storage Temperature: -20°C—60°C Working Relative Humidity: 20%—80% Storage Relative Humidity: 20%—95% Max FPS at full resolution: 10Bit ADC 5496×3672 19fps 3840×2160 41.04fps 1920×1080 80.10fps 1280×720 117.30fps 640×480 169.92fps 320×240 308.17fps 12bit ADC 5496×3672 19fps 3840×2160 36.12fps 1920×1080 70.48fps 1280×720 103.23fps 640×480 149.53fps 320×240 271.19fps

Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!




IMX183CLK-J/CQJ-J





Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor




High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors
In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel. The optical size is1 inch.



DDR Memory Buffer
The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.
Astrophotography Performance
The ASI183 cameras has a very large full well capacity(15000e) for such small pixel size,1.6eread noise @ 30DB, and12stopsdynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Reliable Mechanics
ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.
Even when used in higher humidity environments, ASI183 Pro will still work fine without dew problems.
High Speed
Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.
10Bit ADC 5496×3672 19fps 3840×2160 41.04fps 1920×1080 80.10fps 1280×720 117.30fps 12bit ADC 5496×3672 19fps 3840×2160 36.12fps 1920×1080 70.48fps 1280×720 103.23fps
High QE
Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.
Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

Dark Current
The dark current of the ASI183 is extremely low, based on our test results.
Dark frame sample @ Highest dynamic range settings(gain=0), 300s, -10°C, bin1. Please check the dark frame to make sure you are fully know the performance.

USB 3.0 Port & USB2.0 HUB
USB 3.0 Port:Provide 5Gb bandwidth tomake it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode) atfull resolution(20.18Mega).
Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.
Using a battery with 9-15V is also suitable for the cooler power supply.
USB 2.0 HUB:can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System
TheASI183Pro has a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera. You needorder a suitable power supply .
Connecting Drawing

1. M43-T2 adapter
2. EOS-T2 adapter
3. 2”Filter (optional)
4. 1.25” T-Mount
5. 1.25” Filter (optional)
6. M42-1.25” Filter (optional)
7. T2 extender 11mm
8. M42-M48 extender 16.5mm
9. T2-T2 adapter
10. EFW mini
11. EOS adapter for EFW
Mechanical Drawing
What is in the box?
ASI183 Pro box includes all necessary cables, adapters, and manuals.

Notice:CooledZWO ASIcamerasrequiresa 12vpower supply, which is not included with the camera. You need order a suitable power supply .
